3D Scan Head
A 3-axis scan head is included for the best marking solution for round/cylinder objects.
StellarMark 3DS 20-50W Fiber Laser Marker
English
Laser Marking Machine

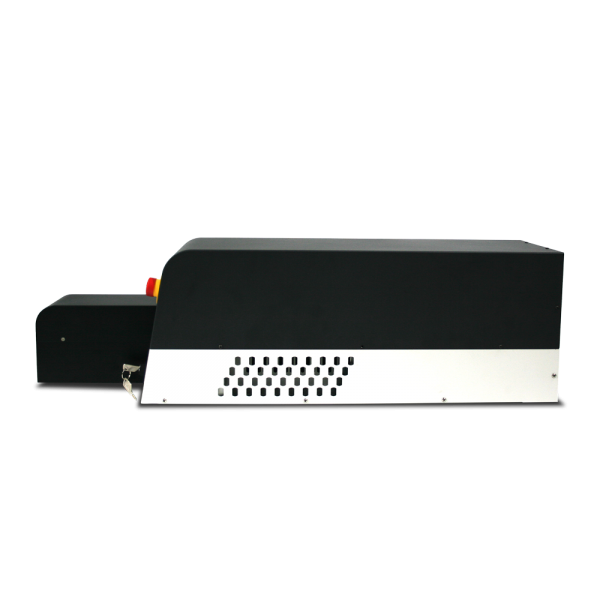

StellarMark 3DS Laser Marker
StellarMark 3DS Laser Marker series is integrated with a 3D scan head, which allows users to process round/cylinder objects with ease. The scan head provided with a 300x300mm working area and the focus range is 100mm.
1 1
Laser Marking Machine
StellarMark 3DS Laser Marker
The system is an all-in-one designed (only for 20W/30W), allowing easier and fast integration into the production line to meet every customers' needs.
Feature
StellarMark 3DS Laser Marker Feature

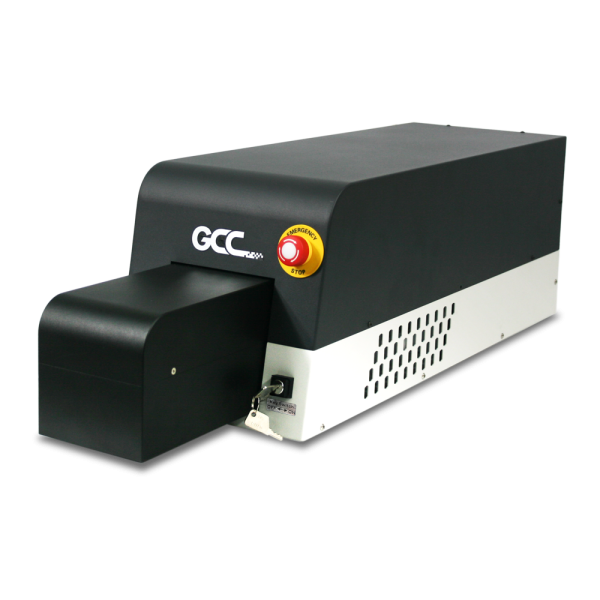

All-in-one Design
The machine has an advanced All-IN-ONE design featuring size and easy integration into the production line.
300x300mm working area
Standard 300x300mm working area that helps you process large objects and allow your for far more applications.

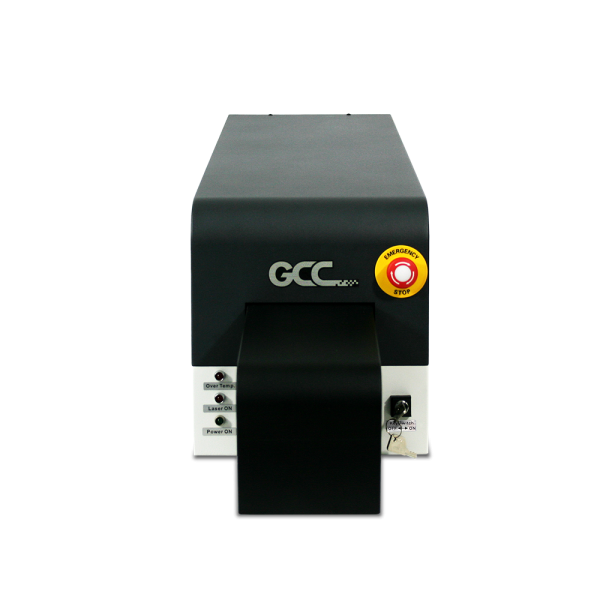

Emergency Stop
A red button located on the front of the machine allows operators to stop the laser and AC power immediately for greater safety.
Key Switch
The safety feature enables the manager/owner to keep the machine locked in a specific mode to avoid tampering.
2-Point Focus Tool
Two red beams assist the user in accurately setting the focus distance.

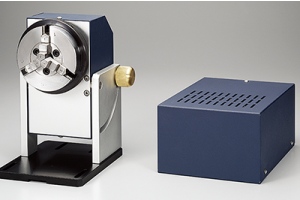

Rotary Attachment - Marker
The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

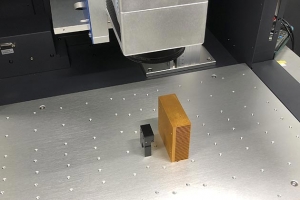

MultiFOCUS
MultiFOCUS function allows user to set multiple focus distances setting at once according to the object height. Z-axis will automatically adjust correctly so users do not need to set focal distance multiple times.

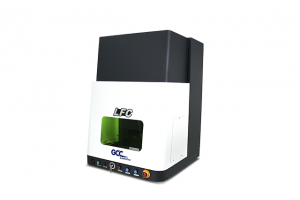

LFC D Desktop Workstation
Compact and stylish desktop workstation. Equipped with many functions to keep operators safe.

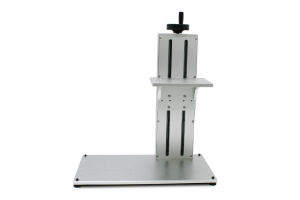

EZ Stand
EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with StellarMark C, I, and 3DS series.
StellarMark 3DS Laser Marker Spec
| StellarMark 3DS JML Model | 3DS200-30JML | 3DS200-60JML | 3DS300-30JML | 3DS300-60JML | |
|---|---|---|---|---|---|
| Laser Source | Wavelength | 1,064 nm | |||
| Type | Fiber Laser | ||||
| Output Power | 30W | 60W | 30W | 60W | |
| Cooling | Air-cooled, no water chiller required | ||||
| Working Area | 200 x 200 mm | 300 x 300 mm | |||
| Spot Size | 0.041 mm | 0.067 mm | |||
| Max. Marking Speed | 6,000 mm/s | ||||
| Focal Distance | 285 mm | ||||
| Focus range in z direction | 100 mm | ||||
| Electrical Requirements | Power Supply | AC Auto Switching 115V / 230V, 50-60 Hz/ single phase | |||
| Power Consumption | 740W | ||||
| Dimensions | Laser Marker | L 760 x W 210 x H 220 mm | |||
| Laser Housing Unit | L 383 x W 318 x H 120 mm | ||||
| Laser Marker Weight | 16.0 Kg | ||||
| Laser Housing Unit Weight | 12.7 Kg | ||||
| Operating system | Microsoft Windows 10/11 (32/64 Bit) (Desktop or Laptop PCs) | ||||
| Environment | Temperature | 15℃ ~ 35℃ | |||
| Humidity | 10 ~ 80% Non condensing | ||||
| Safety | Class 4 (EN60825-1 Class 1 available with safety shield LFC D) 2006/42/EC Machinery Directive) 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive | ||||
| Model No. | 3DS200-30JML | 3DS200-60JML | 3DS300-30JML | 3DS300-60JML | |
|---|---|---|---|---|---|
| Working Area | 200 x 200 mm | 300 x 300 mm | |||
| Spot Size | 0.041 mm | 0.067 mm | |||
| Working Distance | 245 ± 2 mm | 285 ± 2 mm | |||
| Repeatability** | 0.04 mm | 0.04 mm | |||
*Speed does not equal to throughput. See dealer or visit www.gccworld.com for more details.
** File transmission at USB 2.0 Full Speed rate.
Specifications are subject to change without prior notice.
