4.45 m/s (175 in/s) Engraving Speed
Piolas 400 Series excels in performance, delivering unparalleled productivity benefits.

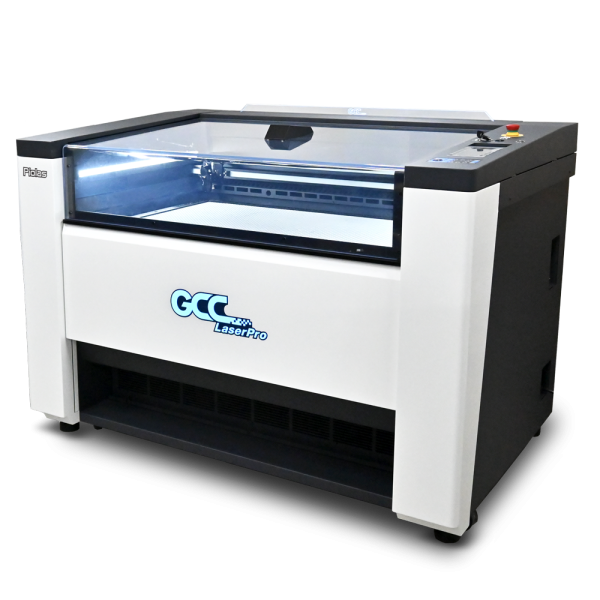

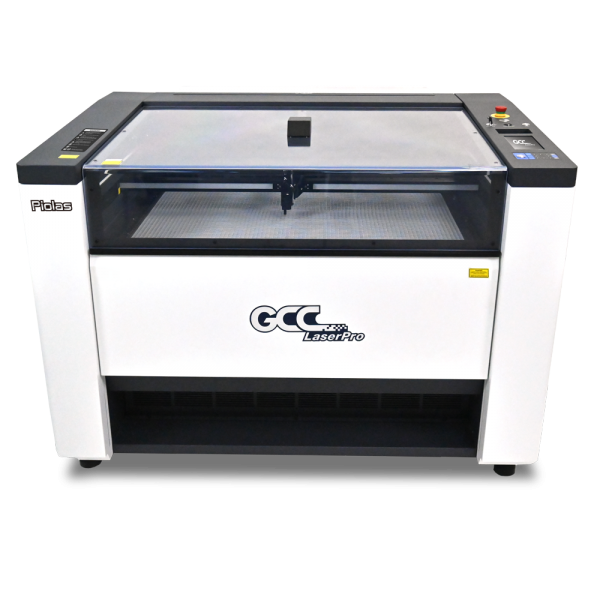

Piolas 400 CO2 Laser Engraver
English
Laser Engraving Machine
🆕 Piolas 400 Series Laser Engraver
GCC LaserPro Piolas 400 Series stands as the pinnacle of our technological advancements, boasting an unprecedented speed of 4.44 m/s (175 in/s).
1 1
Laser Engraving Machine
🆕 Piolas 400 Series Laser Engraver
With innovative features like SmartEYES™ and live-view CCD, the operation is seamless and effortless. Elevate your artwork to new heights with GCC Piolas 400 Series, delivering unmatched throughput and quality.
Feature
Piolas 400 Series Laser Engraver Feature
Transparent Top-lid Window
The clear and lightweight top-lid window allows expensive visibility and superior ease of use.
Live-view Camera
The standard live-view camera is an ideal educational tool for real-time observation and learning.
Status Indicator Light
The status indicator bar displays the machine's current operating state, standby mode, or error status, enabling users to easily monitor the machine's condition from a distance.
SmartEYES™ CCD
SmartEYES™ CCD on the top lid, offering a comprehensive view of the entire work area for effortless positioning.
7” Touch Panel
Outfitted with a standard 7-inch touch panel and button controls for an intuitive and convenient operational experience.
SmartLID™ for Easy Maintenance
An easy-access design simplifies maintenance.
Easy Platform Switching
The unique rotary knob design enables easy switching between different cutting platforms.
User Friendly Driver Interface
Starting from end users' view, GCC driver evolves into a brand new design with the intuitive interface to favor each user.
Stack Light Set
The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line GCC LaserPro laser engraving and cutting systems. Purex is specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Noise-free operation, high vacuum capacity, compact design, and long life expectancy, the Purex is CE-compliant that represents the latest invention in exhaust extraction and smoke reduction technology for all types of applications.
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, helps you eliminate the harmful and damaging side effects of moisture on the laser optics. In addition, it provides the optimal air pressure when laser engraving and cutting to blow away vaporized particles and prevent overheating, keeping lenses and mirrors clean for longer laser life.
SmartGUARD™ Fire Alarm (Patented)
Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.

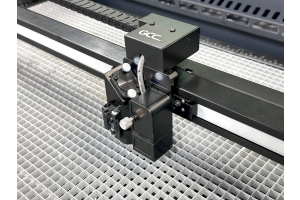

SmartVISION™ Elite CCD
The GCC Piolas laser engraver utilizes the CCD module to enhance productivity by learning, memorizing, and precisely locating printed graphics for contour cutting. It automatically adjusts settings to ensure accurate cuts on various materials like wood, acrylic, and cardstock. Additionally, the SmartVISION™ Elite CCD can be quickly detached and reinstalled, making it more convenient to use.
SmartTOOL™
The GCC SmartTOOL™ is a Windows CorelDraw extension that drastically reduces process times. It simplifies tasks, saves time, and is intuitive to use without training. You will be amazed by its features.
GCC offers a 10-day trial for users. You can download it and visit the following link to obtain the trial code.
License Registration
GCC offers a 10-day trial for users. You can download it and visit the following link to obtain the trial code.
License Registration
Piolas 400 Series Laser Engraver Spec
| Piolas 400 | Piolas 400SE | ||
|---|---|---|---|
| Work Area | without CCD | 1,016 x 610 mm (40 x 24 in.) | |
| with CCD | |||
| Max. Part Size (W x L x H) | 1,091 x 680 x 280 mm (43 x 26.8 x 11 in.) | ||
| Max. Part Size (W x L x H) (with pass-through door module) | 1,064 x ∞ x 165 mm (41.9 x ∞ x 6.5 in.) | ||
| Working Table | Standard Alu Grid Cutting Table with leveling adjustment | Standard Alu Grid Cutting Table w/o leveling adjustment | |
| Working Table Size | 1,021 x 614 mm (40.2 x 24.2 in.) | ||
| Dimensions (L x W x H) | 1,511 x 1,107 x 1,123 mm (59.5 x 43.6 x 44.2 in.) | ||
| Weight | 392 kg / 864 lb | ||
| Laser Source | CO₂ : 60W, 80W, 100W, 120W | ||
| Cooling | 60W~120W - Air-cooled, Operating environment temperature 15°- 30°C (59°- 86°F) | ||
| Drive | AC Servo System | ||
| Camera | SmartEYES | Standard | |
| Live-view camera | Standard | ||
| SmartVISION Elite | Optional | ||
| Max. Engraving Speed | 4.44 m/s (175 in/s) | ||
| Speed Control | Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job) | ||
| Power Control | Adjustable from 0-100% (Up to 16 color-linked power settings per job) | ||
| Engraving Capability | 256-level gray scale image processing capability | ||
| Z-Axis Movement | Automatic | ||
| Focus Lens | CO₂:Standard 2.0" (Optional 1.5", 2.5", 3.0" & 4.0") | ||
| Resolution (DPI) | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 | ||
| Interface | 10 Base-T Ethernet, USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)USB Type-B 2.0  – For connecting with the computer | ||
| Compatible Operating Systems | MS Windows | ||
| Control Panel | 7" Touch panel | ||
| Safety | Class 1 Laser Product Complies with EN60825-1:2014, EN ISO 13849-1:2023 Class 2 Laser Product Complies with CDRH 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module | ||
| Facility Requirements | |||
| Operation Voltage | 60Watt and above, 200-240VAC, 50/60HZ Auto Switching, max. 15A | ||
| Exhaust Port Diameter | Upper exhaust port diameter: 4" (101mm) / Lower exhaust port diameter: 5" (127mm) | ||
| Fume Extraction System | External exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/min) is required, 2.3kPA negative pressure (Pure-Air PA-1500FS @ 4" exhaust port) | ||
| * Speed is not equal to throughput. See dealer or visit www.gccworld.com for more detail. | |||
